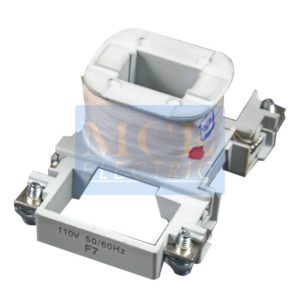

| AC Coil Voltage | 24V, 48V, 110V, 230V, 400V, 500V |
|---|---|
| Amperage | 9A, 12A, 18A, 22A |
3 Pole DIN rail base mount
Coil Operating Frequency: 50 – 60Hz
| Current Rating | 400V | Main | Dimensions | ||
| AC3 | AC1 | kW | HP | Contact | H x W x D (mm) |
| 9A | 20A | 4 | 5,5 | 1NO + 1NC | 80 x 44 x 86 |
| 12A | 25A | 5,5 | 7,5 | 1NO + 1NC | 80 x 44 x 86 |
| 18A | 32A | 11 | 15 | 1NO + 1NC | 80 x 44 x 86 |
| 22A | 36A | 15 | 20 | 1NO + 1NC | 80 x 44 x 86 |
