Diesel Box Screw Air Diesel Compressors
A box-type air compressor is a compact and enclosed unit designed for efficient and portable operation in various industrial and construction settings.
Diesel Box Air Compressor Advantages
Whether you need to move on site or prefer a stationary solution. Professionally manufactured air compressors that offer a range of options suitable for a variety of applications. Box air compressors have the advantages of compact appearance, quietness, stability, high performance and a long life.
1 - Diesel Engines
Our box type diesel air compressors are manufactured with world class engine brands including Cummins, ISUZU and FAW.
2 - Two Stage Air Filter
The double layer nano scale air filter enhances filtration efficiency, extends engine life, improves fuel efficiency, reduces maintenance costs, ensures consistent performance and offers environmental benefits by capturing finer particles.

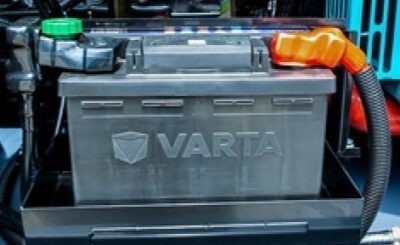

3 - VARTA Batteries
VARTA batteries offer superior performance, long lifespan, reliable power, advanced technology, minimal maintenance and high safety standards which makes them ideal for our air compressors.

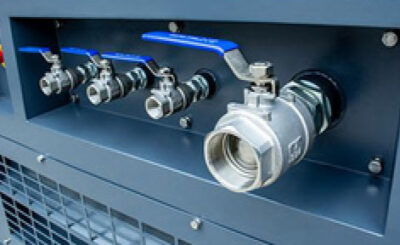

4 - Stainless Steel Outlet Valves
Stainless steel outlets for diesel air compressors offer durability, corrosion resistance, reliability, longevity and maintain air purity.
5 - Emergency Stop Button
An emergency stop button for a diesel air compressor enhances safety, allows immediate shutdown in emergencies, prevents damage, reduces risks, ensures operator protection and equipment reliability.

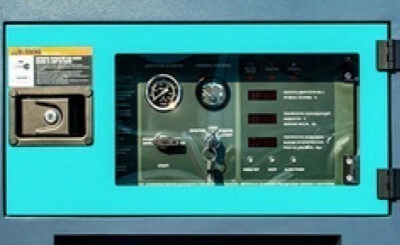

6 - User Friendly Control Panel
Diesel air compressors designed with an intuitive user-friendly control panel interface. This allows for enhanced monitoring, accuracy, improved safety and efficiency. Ultimately resulting in air compressor reliability.
Take a look at a few of our products below
Full range of box type diesel air compressors with specifications
< scroll on mobile >
|
MODEL |
FREE AIR DELIVERY |
PRESSURE |
ENGINE |
DIMENSIONS (mm) |
WEIGHT (kg) |
AIR OUTLETS |
|---|---|---|---|---|---|---|
|
CF100B-7 |
100CFM/2.8M³/MIN |
7BAR/101.5PSI |
ISUZU JE493YB |
1880*915*1230 |
820 |
2x3/4" |
|

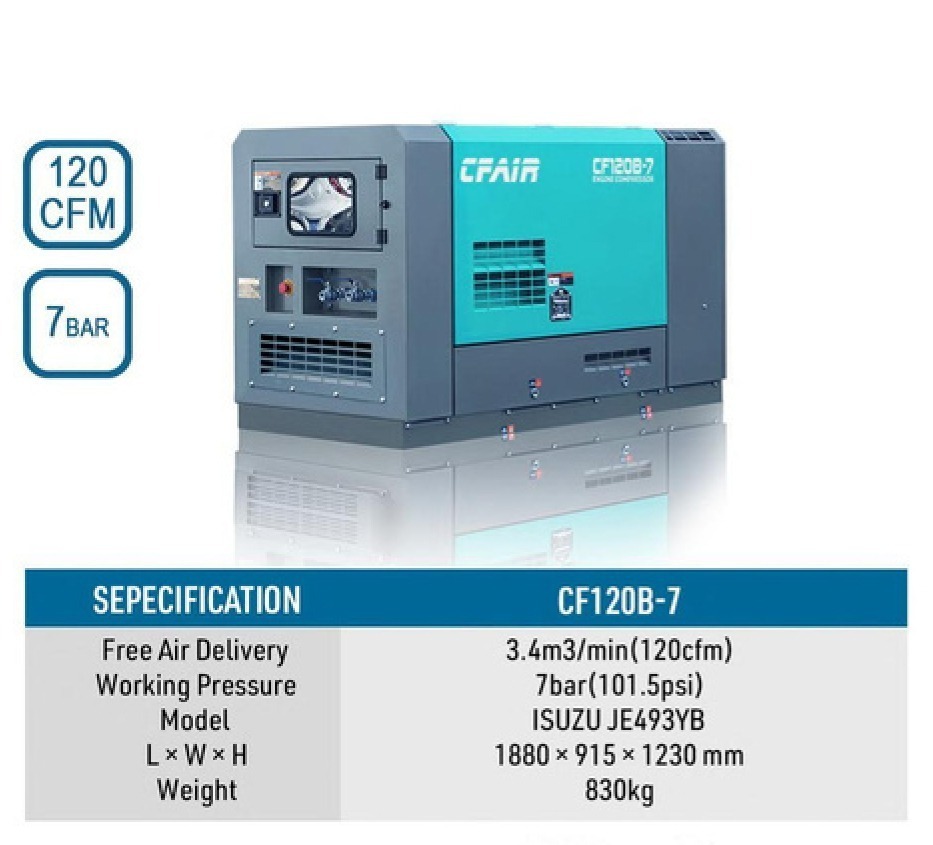

CF120B-7 |
120CFM/3.4M³/MIN |
7BAR/101.5PSI |
ISUZU JE493YB |
1880*915*1230 |
830 |
2x3/4" |
|
CF130B-7 |
130CFM/3.7M³/MIN |
7BAR/101.5PSI |
ISUZU JE493YB |
1880*915*1230 |
830 |
2x3/4" |
|
CF185B-7 |
185CFM/5.2M³/MIN |
7BAR/101.5PSI |
FAW 4DW91-56G2 |
2100*980*1100 |
930 |
3x3/4" |
|

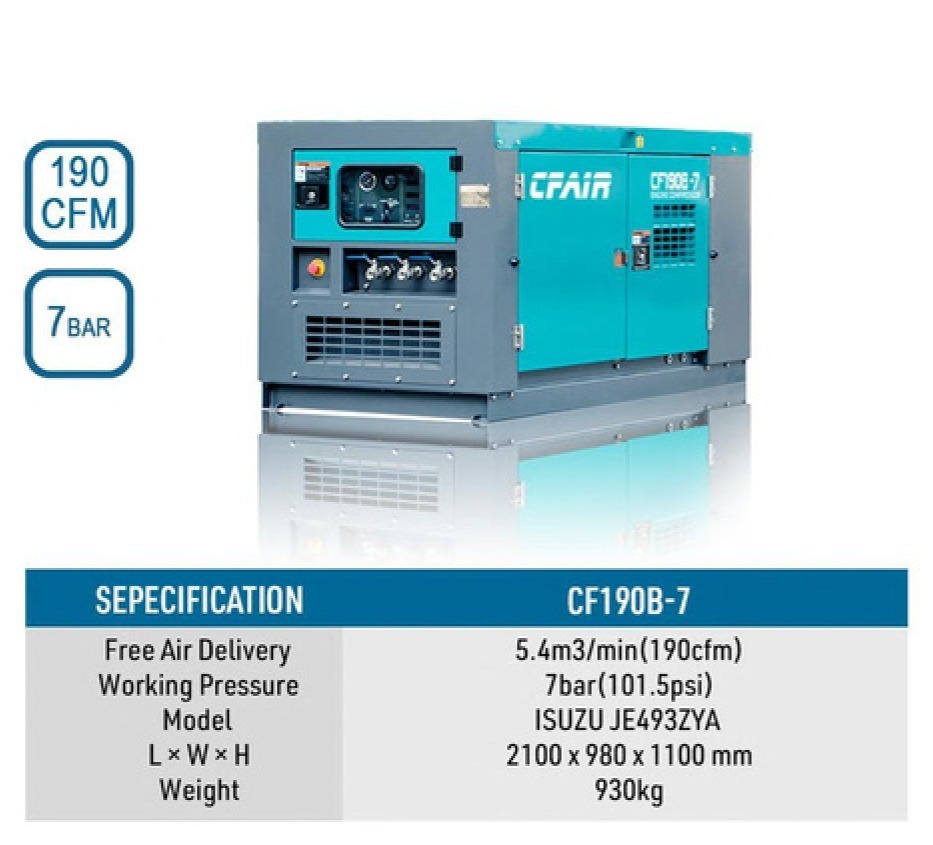

CF190B-7 |
190CFM/5.4M³/MIN |
7BAR/101.5PSI |
ISUZU JE493ZYA |
2100*980*1100 |
930 |
3x3/4" |
|

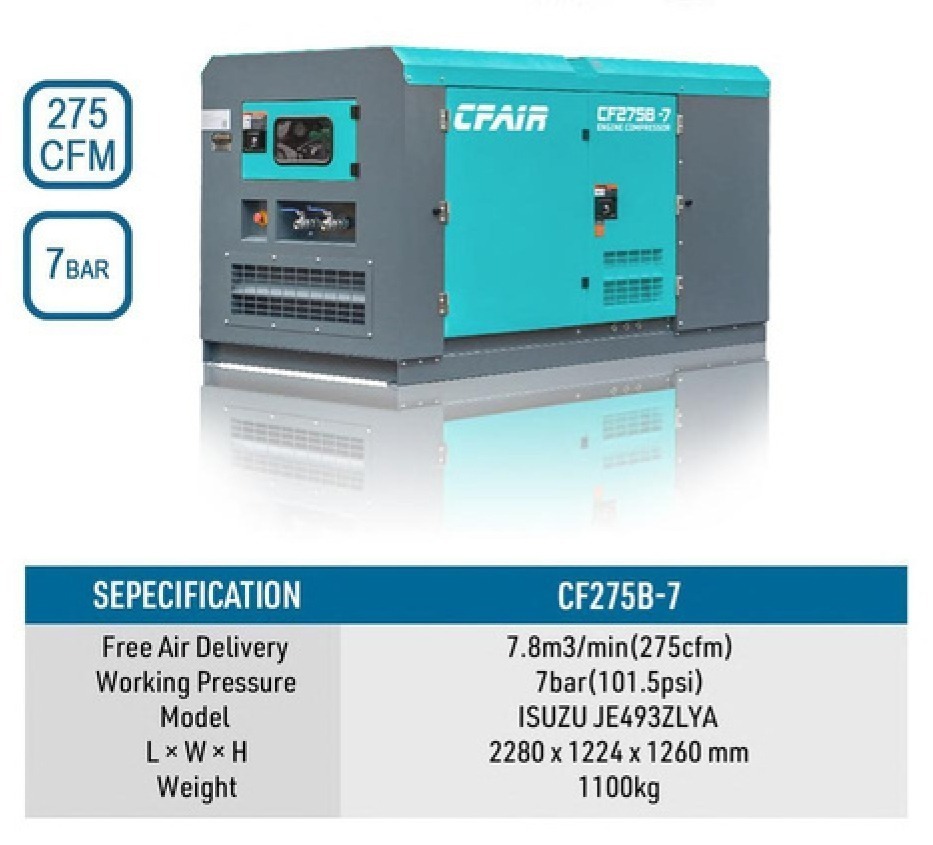

CF275B-7 |
275CFM/7.8M³/MIN |
7BAR/101.5PSI |
ISUZU JE493ZLYA |
2280*1224*1260 |
1100 |
2x3/4" + 1x1-1/4" |
|
CF375B-7 |
375CFM/10.6M³/MIN |
7BAR/101.5PSI |
CUMMINS 4BTA3.9-C125 |
2657*1355*1466 |
1850 |
3x3/4" + 1x2" |
|

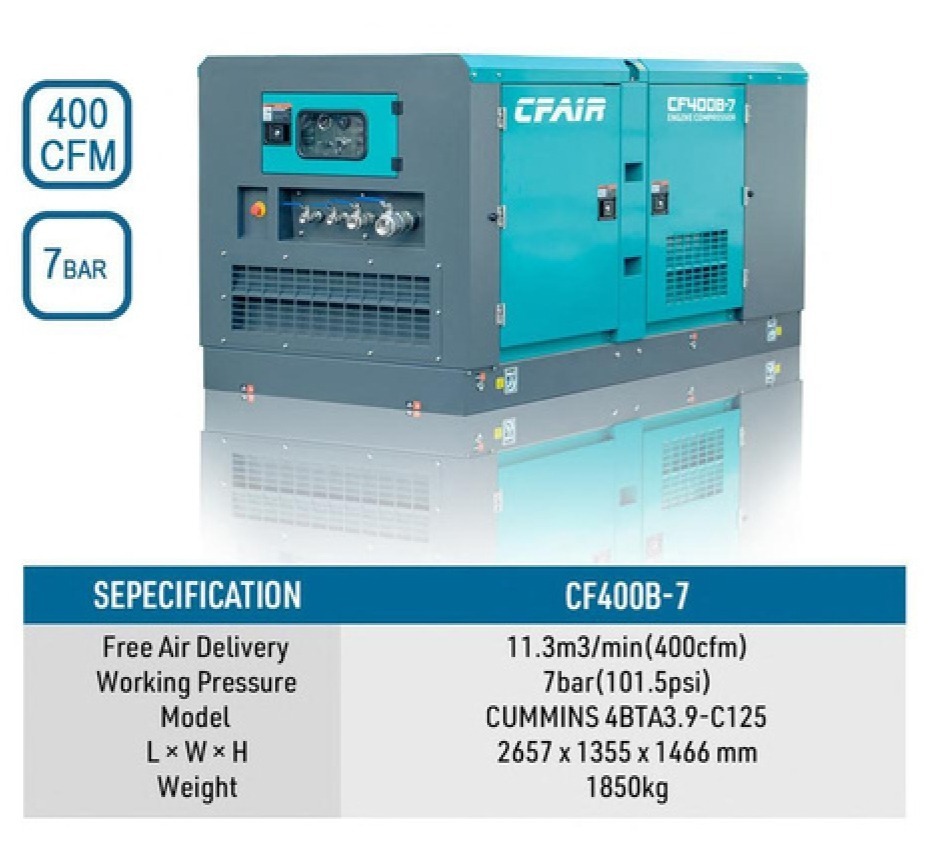

CF400B-7 |
400CFM/11.3M³/MIN |
7BAR/101.5PSI |
CUMMINS 4BTA3.9-C125 |
2657*1355*1466 |
1850 |
3x3/4" + 1x2" |
|
CF550B-7 |
550CFM/15.5M³/MIN |
7BAR/101.5PSI |
CUMMINS 6BTA5.9-C180 |
2970*1350*1465 |
1920 |
3x3/4" + 1x2" |
|
CF750B-7 |
750CFM/21.1M³/MIN |
7BAR/101.5PSI |
CUMMINS 6CTA8.3-C260 |
3600*1750*1900 |
3600 |
1x3/4" + 1x2" |
|
CF830B-7 |
830CFM/23.4M³/MIN |
7BAR/101.5PSI |
CUMMINS 6LTAA8.9-C360 |
3918*2200*2260 |
4200 |
1x3/4" + 1x2" |
|
CF1800B-7 |
1800CFM/50.7M³/MIN |
7BAR/101.5PSI |
CUMMINS QSZ13-C550 |
3600*1950*1900 |
7155 |
1x3/4" + 1x2" |
|
CF80B-10.5 |
80CFM/2.3M³/MIN |
10.5BAR/152.25PSI |
ISUZU JE493YA |
1880*915*1230 |
830 |
2x3/4" |
|
CF100B-10.5 |
100CFM/2.8M³/MIN |
10.5BAR/152.25PSI |
ISUZU JE493YA |
1880*915*1230 |
830 |
2x3/4" |
|
CF210B-10.5 |
210CFM/5.9M³/MIN |
10.5BAR/152.25PSI |
ISUZU JE493ZLYA |
2280*1224*1260 |
1100 |
2x3/4" + 1x1-1/4" |
|

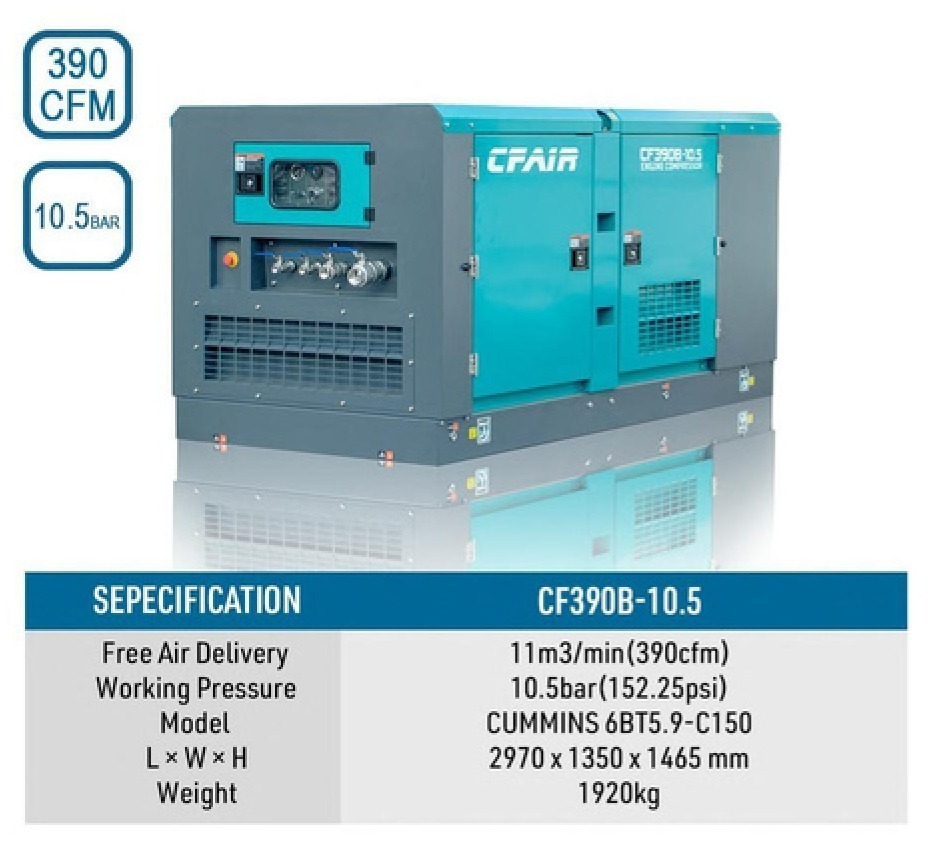

CF390B-10.5 |
390CFM/11M³/MIN |
10.5BAR/152.25PSI |
CUMMINS 6BT5.9-C150 |
2970*1350*1465 |
1920 |
3x3/4" + 1x2" |
|
CF460B-10.5 |
460CFM/13M³/MIN |
10.5BAR/152.25PSI |
CUMMINS 6BTA5.9-C180 |
2970*1350*1465 |
1920 |
3x3/4" + 1x2" |
|
CF535B-10.5 |
535CFM/15M³/MIN |
10.5BAR/152.25PSI |
CUMMINS QSB5.9-C210 |
2970*1350*1465 |
1920 |
3x3/4" + 1x2" |
|
CF655B-10.5 |
655CFM/18.5M³/MIN |
10.5BAR/152.25PSI |
CUMMINS 6CTA8.3-C260 |
3600*1750*1900 |
3600 |
1x3/4" + 1x2" |
|
CF780B-10.5 |
780CFM/22M³/MIN |
10.5BAR/152.25PSI |
CUMMINS 6CTA8.3-C260 |
3600*1750*1900 |
3600 |
1x3/4" + 1x2" |
|

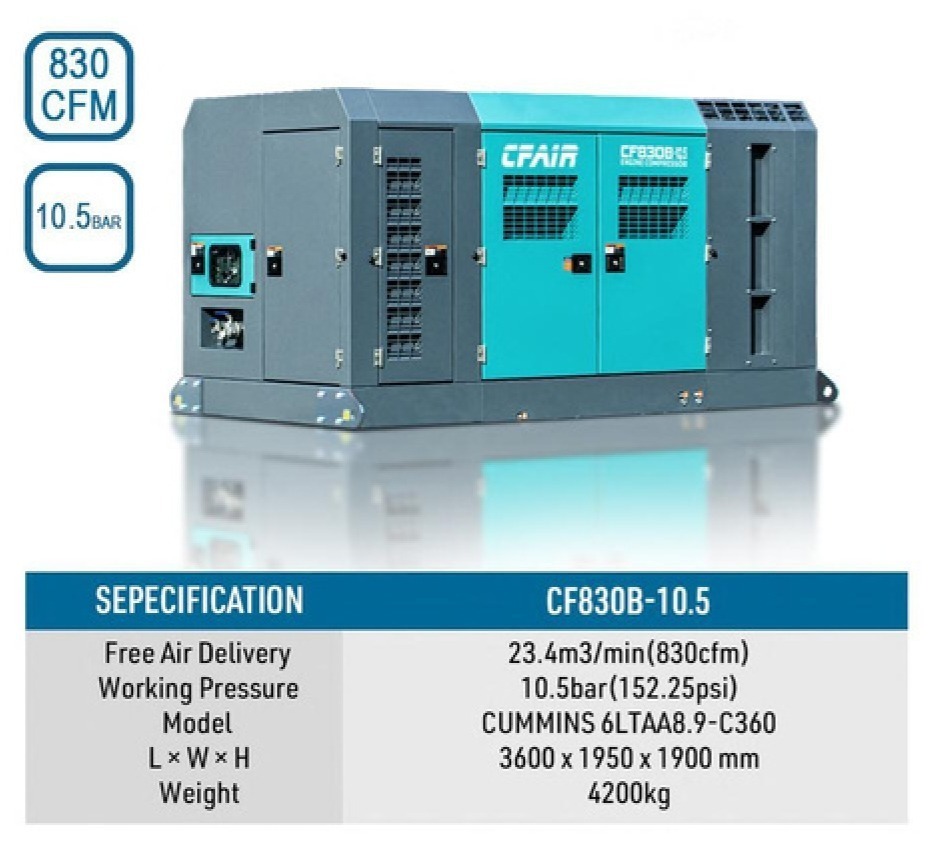

CF830B-10.5 |
830CFM/23.4M³/MIN |
10.5BAR/152.25PSI |
CUMMINS 6LTAA8.9-C360 |
3600*1950*1900 |
4200 |
1x3/4" + 1x2" |
|
CF1200B-10.5 |
1200CFM/33.8M³/MIN |
10.5BAR/152.25PSI |
CUMMINS QSZ13-C550 |
3918*2200*2260 |
7155 |
1x3/4" + 1x2" |
|
CF1600B-10.5 |
1600CFM/45M³/MIN |
10.5BAR/152.25PSI |
CUMMINS QSZ13-C550 |
3918*2200*2260 |
7155 |
1x3/4" + 1x2" |
