Diesel Oil-Free Screw Air Compressors
An oil-free diesel screw air compressor is a machine that compresses air using a screw mechanism without the need for oil lubrication, ensuring clean air output and reducing maintenance requirements.

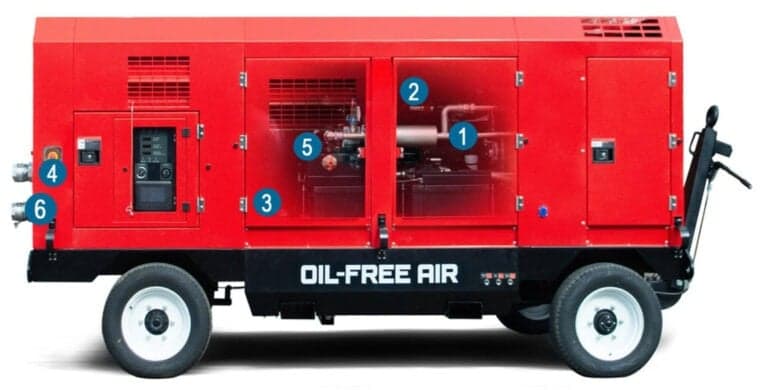

Diesel Oil-Free Air Compressor Advantages
Oil-free screw air compressors are well known in the market for their quietness, stability and durability after being carefully designed by experts. Achieving industry leadership through advanced engineering and manufacturing.

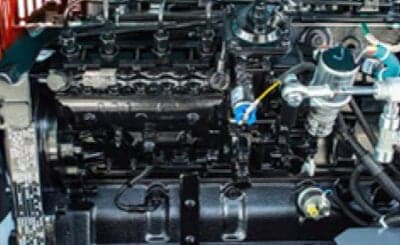

1 - Diesel Engines
Our oil free diesel air compressors are manufactured with world class engine brands including CUMMINS, CAT, ISUZU and FAW.

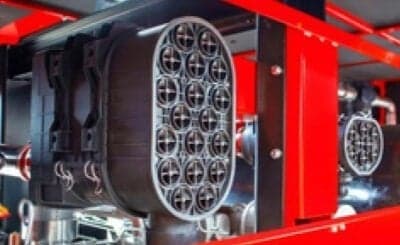

2 - Two Stage Air Filter
The double layer nano scale air filter enhances filtration efficiency, extends engine life, improves fuel efficiency, reduces maintenance costs, ensures consistent performance and offers environmental benefits by capturing finer particles.

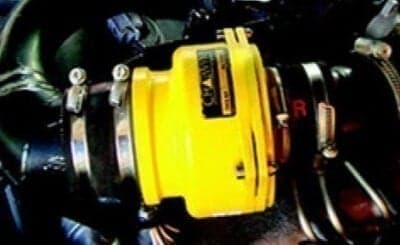

3 -Spark Arrestor
The spark arrestor in a diesel oil-free screw air compressor prevents sparks from igniting flammable materials, enhancing safety by trapping and cooling sparks. Reducing fire risk and ensuring compliance with safety regulations.

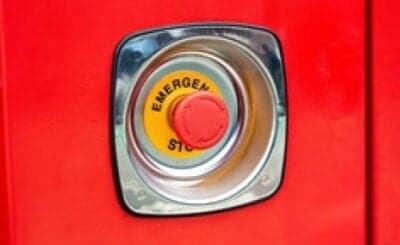

4 -Emergency Stop Button
An emergency stop button for a diesel air compressor enhances safety, allows immediate shutdown in emergencies, prevents damage, reduces risks, ensures operator protection and equipment reliability.

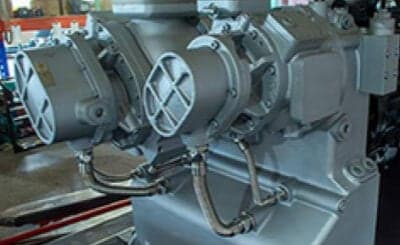

5 - Oil-Free Air Compressor Head
The oil-free screw air compressor, designed with German technology, ensures clean air output, reduced maintenance, longer operational life and environmental friendliness.

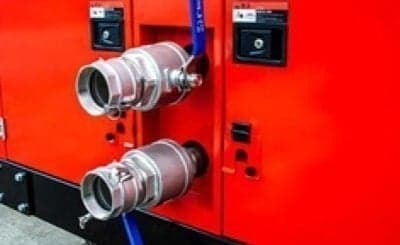

6 -Stainless Steel Outlet Valves
Stainless steel outlets for diesel air compressors offer durability, corrosion resistance, reliability, longevity and maintain air purity.
Take a look at a few of our products below
Full range of oil-free diesel air compressors with specifications
< scroll on mobile >
|
MODEL |
FREE AIR DELIVERY |
PRESSURE |
ENGINE |
DIMENSIONS (mm) |
WEIGHT (kg) |
AIR OUTLETS |
|---|---|---|---|---|---|---|
|
CFOF150B-8.8 |
150CFM/4.2M³/MIN |
8.8BAR/129.6PSI |
CUMMINS 4BTA3.9-C125 |
4210*2265*1828 |
3170 |
1x1" + 1x3" |
|

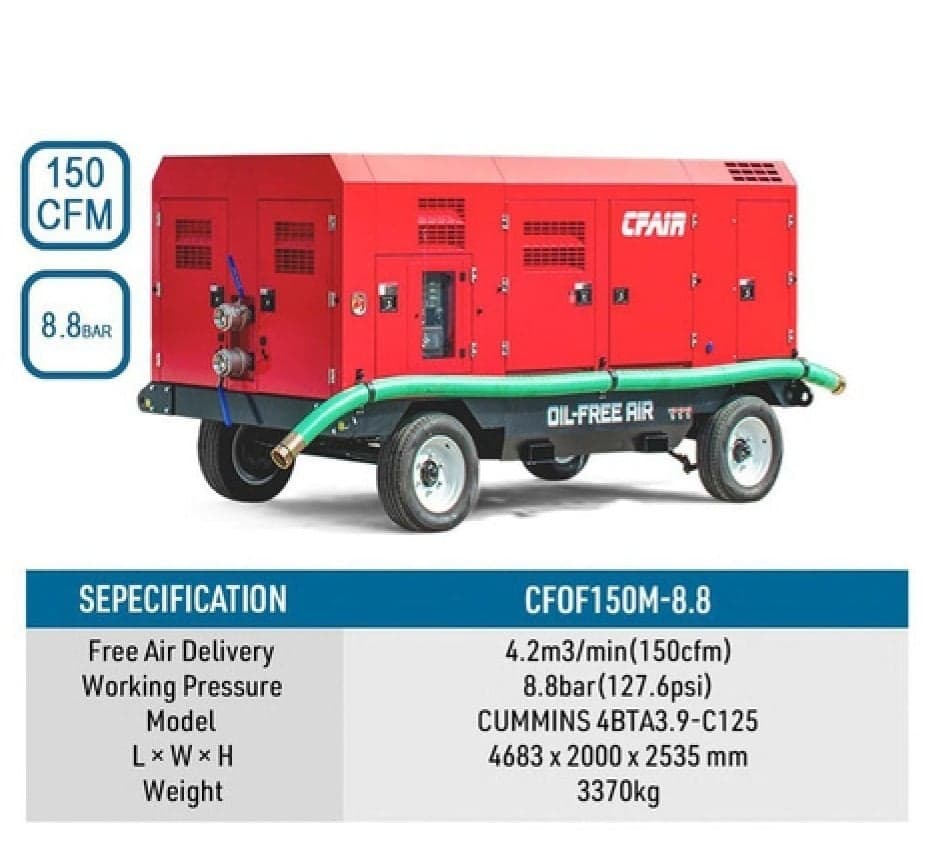

CFOF150M-8.8 |
150CFM/4.2M³/MIN |
8.8BAR/129.6PSI |
CUMMINS 4BTA3.9-C125 |
4500*2265*2250 |
3370 |
1x1" + 1x3" |
|
CFOF150B-10.3 |
150CFM/4.2M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 4BTA3.9-C125 |
4210*2265*1828 |
3170 |
1x1" + 1x3" |
|
CFOF150M-10.3 |
150CFM/4.2M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 4BTA3.9-C125 |
4500*2265*2250 |
3370 |
1x1" + 1x3" |
|
CFOF200B-10.3 |
200CFM/5.6M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 4BTA3.9-C125 |
4210*2265*1828 |
3170 |
1x1" + 1x3" |
|

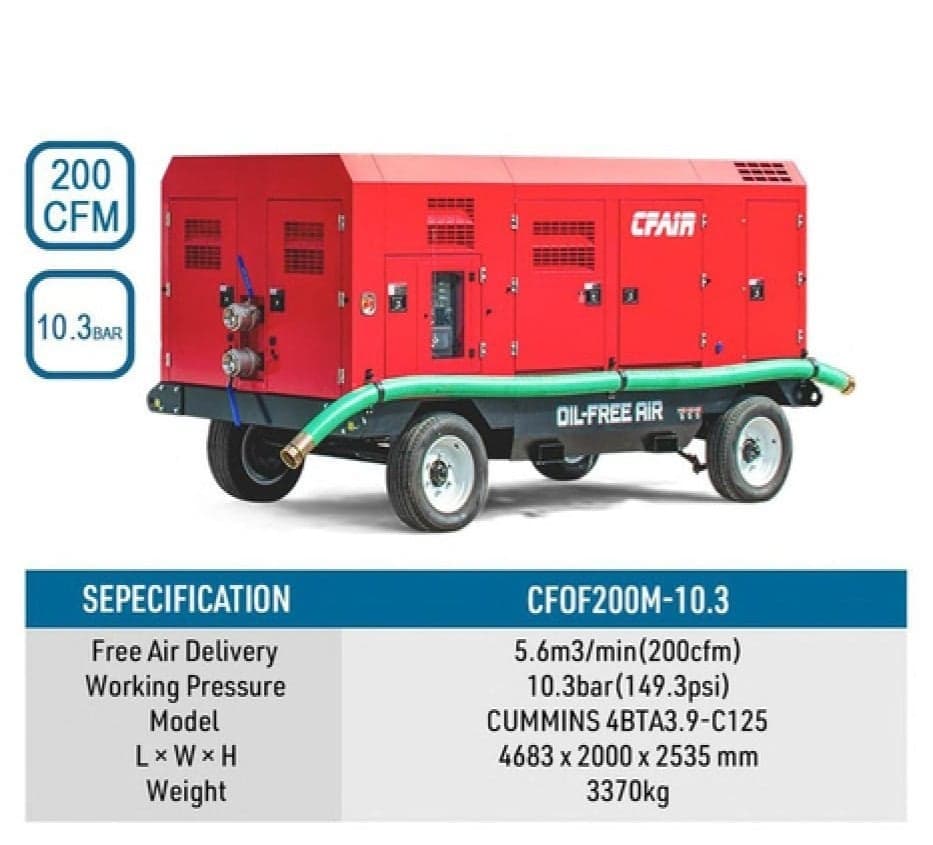

CFOF200M-10.3 |
200CFM/5.6M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 4BTA3.9-C125 |
4500*2265*2250 |
3370 |
1x1" + 1x3" |
|
CFOF700B-10.3 |
700CFM/19.7M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 6CTA8.3-C260 |
3918*2000*2260 |
4300 |
1x1" + 1x3" |
|

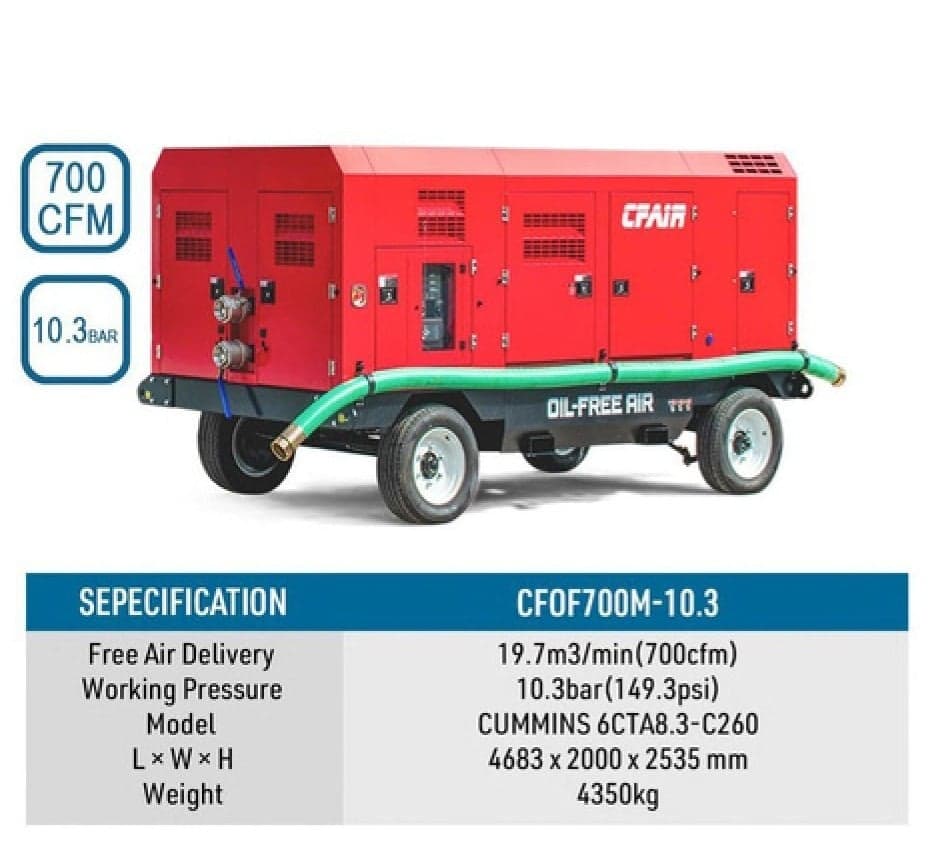

CFOF700M-10.3 |
700CFM/19.7M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 6CTA8.3-C260 |
4683*2000*2535 |
4350 |
1x1" + 1x3" |
|
CFOF900B-10.3 |
900CFM/25.4M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 6LTAA8.9-C360 |
3918*2000*2260 |
4600 |
1x1" + 1x3" |
|

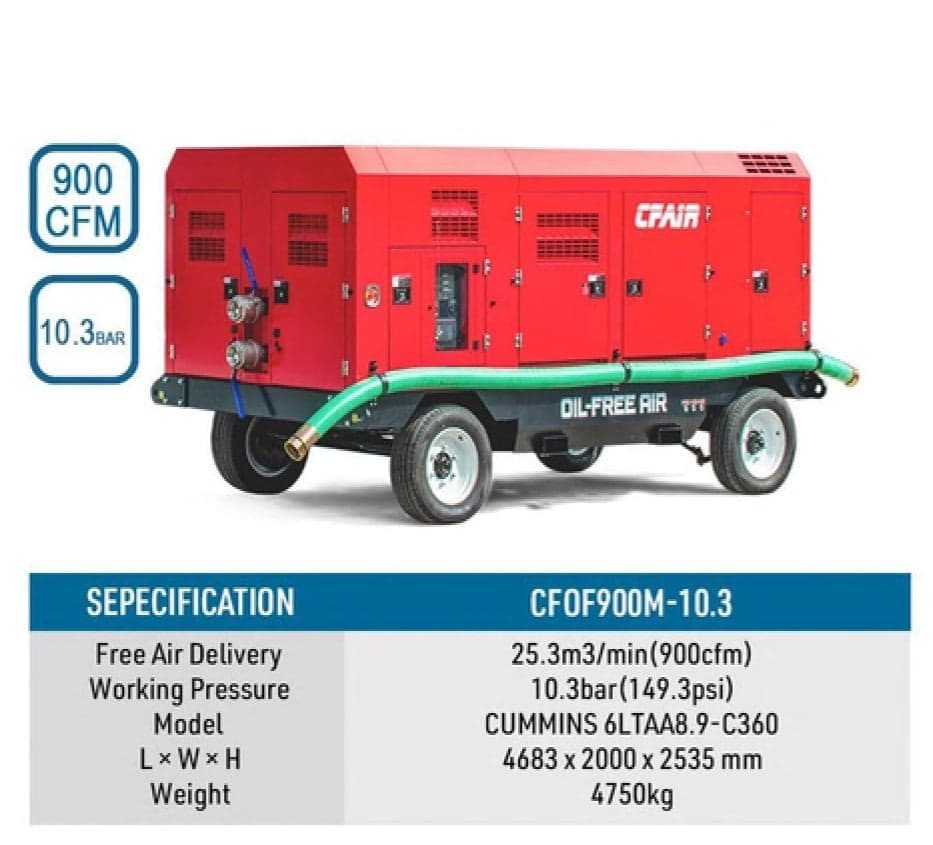

CFOF900M-10.3 |
900CFM/25.4M³/MIN |
10.3BAR/149.3PSI |
CUMMINS 6LTAA8.9-C360 |
4683*2000*2535 |
4750 |
1x1" + 1x3" |
|
CFOF1300BK-10.3 |
1300CFM/36.6M³/MIN |
10.3BAR/149.3PSI |
CUMMINS X12 EPAT4F |
3918*2000*2260 |
7155 |
1x1" + 1x3" |
|
CFOF1300MK-10.3 |
1300CFM/36.6M³/MIN |
10.3BAR/149.3PSI |
CUMMINS X12 EPAT4F |
4683*2000*2535 |
7355 |
1x1" + 1x3" |
|
CFOF1300BC-10.3 |
1300CFM/36.6M³/MIN |
10.3BAR/149.3PSI |
CATERPILLAR C13 |
3918*2000*2260 |
7155 |
1x1" + 1x3" |
|
CFOF1300MC-10.3 |
1300CFM/36.6M³/MIN |
10.3BAR/149.3PSI |
CATERPILLAR C13 |
4683*2000*2535 |
7355 |
1x1" + 1x3" |
|
CFOF1300B-10.3 |
1300CFM/36.6M³/MIN |
10.3BAR/149.3PSI |
CUMMINS QSZ13-C550 |
3918*2200*2260 |
7155 |
1x1" + 1x3" |
|
CFOF1300M-10.3 |
1300CFM/36.6M³/MIN |
10.3BAR/149.3PSI |
CUMMINS QSZ13-C550 |
4683*2000*2535 |
7355 |
1x1" + 1x3" |
|
CFOF1500BK-10.3 |
1500CFM/42.3M³/MIN |
10.3BAR/149.3PSI |
CUMMINS QSM15 |
3918*2000*2260 |
7255 |
1x1" + 1x3" |
|
CFOF1500MK-10.3 |
1500CFM/42.3M³/MIN |
10.3BAR/149.3PSI |
CUMMINS QSM15 |
4683*2000*2535 |
7555 |
1x1" + 1x3" |
|
CFOF1500BC-10.3 |
1500CFM/42.3M³/MIN |
10.3BAR/149.3PSI |
CATERPILLAR C18 |
3918*2000*2260 |
7255 |
1x1" + 1x3" |
|

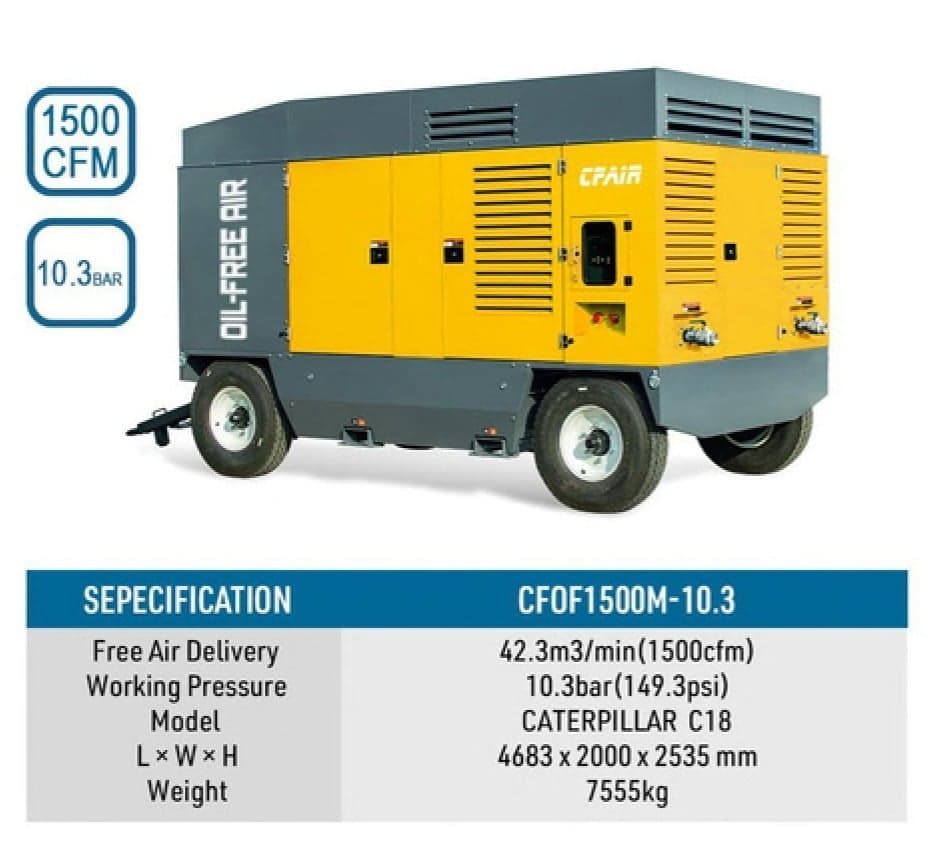

CFOF1500MC-10.3 |
1500CFM/42.3M³/MIN |
10.3BAR/149.3PSI |
CATERPILLAR C18 |
4683*2200*2535 |
7555 |
1x1" + 1x3" |
