Diesel High Pressure Screw Air Compressors
A high-pressure portable air compressor is a mobile machine designed to generate and deliver high pressure compressed air for a variety of industrial applications.
Diesel High-Pressure Air Compressor Advantages
High pressure portable air compressors are expertly designed and renowned in the market for their quiet operation, stability and durability. Once the machine is started all pipelines remain vibration free and leak proof. The exterior is rust resistant and to minimise refuelling frequency it features two large capacity daily fuel tanks. Additionally, it leads the industry in its control system, air filtration, battery and operation system.
1 - Diesel Engines
Our high-pressure diesel air compressors are manufactured with world class engine brands including Cummins, ISUZU and FAW.
2 - Two Stage Air Filter
The double layer nano scale air filter enhances filtration efficiency, extends engine life, improves fuel efficiency, reduces maintenance costs, ensures consistent performance and offers environmental benefits by capturing finer particles.
3 -Stainless Steel Outlet Valves
Stainless steel outlets for diesel air compressors offer durability, corrosion resistance, reliability, longevity and maintain air purity.
4 -VARTA Batteries
VARTA batteries offer superior performance, long lifespan, reliable power, advanced technology, minimal maintenance and high safety standards which makes them ideal for our air compressors.
5 - Emergency Stop Button
An emergency stop button for a diesel air compressor enhances safety, allows immediate shutdown in emergencies, prevents damage, reduces risks, ensures operator protection and equipment reliability.
6 - Dual Fuel Tanks
The high-pressure diesel air compressor's dual large capacity fuel tanks ensure longer run times, reduce refuelling frequency, increase productivity and enhance job site efficiency.
Take a look at a few of our products below
Full range of high-pressure diesel air compressors with specifications
< scroll on mobile >
|
MODEL |
FREE AIR DELIVERY |
PRESSURE |
ENGINE |
DIMENSIONS (mm) |
WEIGHT (kg) |
AIR OUTLETS |
|---|---|---|---|---|---|---|
|
CF140M-12 |
140CFM/3.9M³/MIN |
12BAR/174PSI |
ISUZU JE493ZLYA |
3530*1760*1850 |
1380 |
2x3/4" |
|
CF140M-15 |
140CFM/3.9M³/MIN |
15BAR/217.5PSI |
ISUZU JE493ZLYA |
3530*1760*1850 |
1380 |
2x3/4" |
|
CF275M-12 |
275CFM/7.8M³/MIN |
12BAR/174PSI |
CUMMINS 4BTA3.9-C125 |
4155*2024*1890 |
1970 |
2x3/4" + 1x2" |
|
CF350M-12 |
350CFM/9.9M³/MIN |
12BAR/174PSI |
CUMMINS 6BTA5.9-C180 |
4567*2027*2000 |
2070 |
3x3/4" + 1x2" |
|
CF375M-12 |
375CFM/10.6M³/MIN |
12BAR/174PSI |
CUMMINS 6BTA5.9-C180 |
4567*2027*2000 |
2070 |
3x3/4" + 1x2" |
|
CF430M-12 |
430CFM/12.1M³/MIN |
12BAR/174PSI |
CUMMINS 6BTA5.9-C180 |
4567*2027*2000 |
2070 |
3x3/4" + 1x2" |
|
CF450M-14 |
450CFM/12.7M³/MIN |
14BAR/203PSI |
CUMMINS QSB5.9-C210 |
4567*2027*2000 |
2070 |
3x3/4" + 1x2" |
|
CF455M-18 |
455CFM/12.8M³/MIN |
18BAR/261PSI |
CUMMINS QSB5.9-C210 |
4567*2027*2000 |
2070 |
3x3/4" + 1x2" |
|
CF535M-12 |
535CFM/15.1M³/MIN |
12BAR/174PSI |
CUMMINS QSB5.9-C210 |
4567*2027*2000 |
2070 |
3x3/4" + 1x2" |
|
CF550M-16 |
550CFM/15.5M³/MIN |
16BAR/232PSI |
CUMMINS 6CTA8.3-C260 |
4370*1750*2305 |
3800 |
1x3/4" + 1x2" |
|
CF550M-19 |
550CFM/15.5M³/MIN |
19BAR/275.5PSI |
CUMMINS 6CTA8.3-C260 |
4370*1750*2305 |
3800 |
1x3/4" + 1x2" |
|
CF575M-15 |
575CFM/16.2M³/MIN |
15BAR/217.5PSI |
CUMMINS 6CTA8.3-C260 |
4370*1750*2305 |
3800 |
1x3/4" + 1x2" |
|
CF600M-12 |
600CFM/16.9M³/MIN |
12BAR/174PSI |
CUMMINS 6CTA8.3-C260 |
4370*1750*2305 |
3800 |
1x3/4" + 1x2" |
|
CF700M-18 |
700CFM/19.7M³/MIN |
18BAR/261PSI |
CUMMINS 6LTAA8.9-C360 |
4370*1950*2355 |
4400 |
1x3/4" + 1x2" |
|
CF750M-12 |
750CFM/21.1M³/MIN |
12BAR/174PSI |
CUMMINS 6LTAA8.9-C360 |
4370*1950*2355 |
4400 |
1x3/4" + 1x2" |
|
CF750M-21 |
750CFM/21.1M³/MIN |
21BAR/304.5PSI |
CUMMINS 6LTAA8.9-C360 |
4370*1950*2355 |
4400 |
1x3/4" + 1x2" |
|
CF850M-22 |
850CFM/24M³/MIN |
22BAR/319PSI |
FAW 6DM2-4GG2 |
4688*1900*2340 |
3950 |
1x3/4" + 1x2" |
|
CF900M-12 |
900CFM/25.4M³/MIN |
12BAR/174PSI |
CUMMINS 6LTAA8.9-C360 |
4688*1900*2340 |
4400 |
1x3/4" + 1x2" |
|

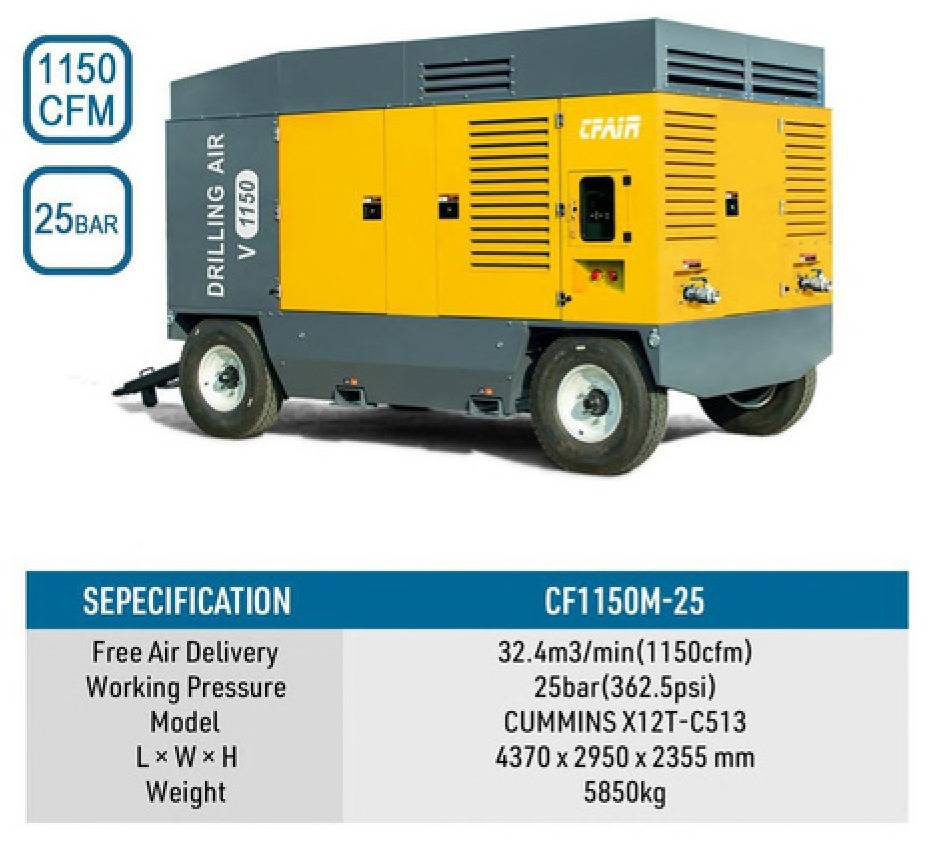

CF1150M-25 |
1150CFM/32.4M³/MIN |
25BAR/362.5PSI |
CUMMINS X12T-C513 |
4370*1950*2355 |
5850 |
1x3/4" + 1x2" |
|
CF1150M-30 |
1150CFM/32.4M³/MIN |
30BAR/435PSI |
CUMMINS QSZ13-C550 |
4683*2200*2535 |
7355 |
1x3/4" + 1x2" |
|
CF1300M-31 |
1300CFM/36.6M³/MIN |
31BAR/449.5PSI |
CUMMINS QSM15 |
4683*2200*2535 |
7600 |
1x3/4" + 1x2" |
|
CF1500M-24 |
1500CFM/42.3M³/MIN |
24BAR/348PSI |
CUMMINS QSM15 |
4370*1950*2355 |
7600 |
1x3/4" + 1x2" |
|
CF1600M-17 |
1600CFM/45M³/MIN |
17BAR/246.5PSI |
CUMMINS QSZ13-C550 |
4370*1950*2355 |
7355 |
1x3/4" + 1x2" |
