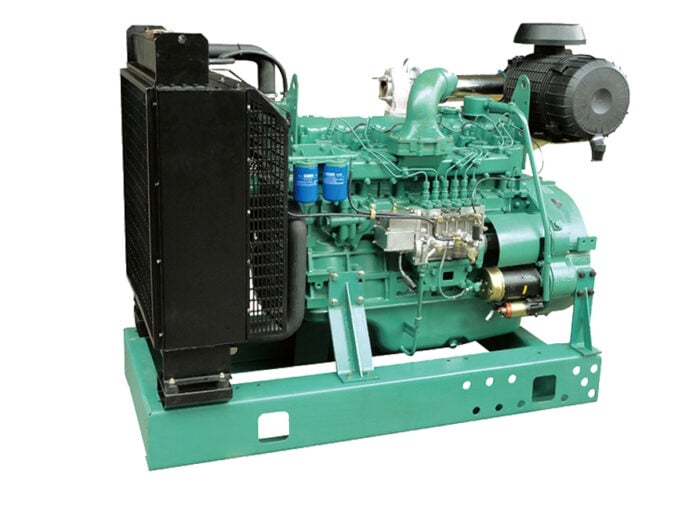

150kVA FAWDE Engine – CA6DF2-19D

150kVA Engine FAWDE – CA6DF2-19D



Type In-Line, 6-cylinder, 4-stroke
Air intake type Turbocharged & Inter
Cooling mode Water cooling
Governor mode Electronic
Bore x Stroke(mm) 110×125
Compression ratio 17:1
Rated speed(rpm) 1500
Displacement(L) 7.13
Alternator Alternator: 55A 28V
Starter Motor Starter motor: 6kW 24V
SKU: CA6DF2-19D Categories: ,

Description

150kVA FAWDE Engine – CA6DF2-19D

OUTPUT & CONSUMPTION

Rated power(without fan)(kW) 140
Standby power(without fan)(kW) 154
Fuel consumption(g/kWh) 200
Oil consumption(L/h) 0.06
Steady state speed regulation(%) <3
Oil capacity including filter(L) 23
Emission compliant Stage II
The flywheel shell interface SAE2
The flywheel shell interface Flywheel for 11.5″ flexible coupling

DIMENSIONS

Dry weight of base(kg) 680
Dry weight of Gen Pac(kg) 880
Overall dimension(base)(mm) 1320x680x1100

LIQUIDS & HEAT

Fan consumption(kW) 8
27°C air consumption(m³/min) 12
Heat rejection of exhaust(kW) 120
Exhaust gas temperature after turbine(°C) 470
Exhaust gas flow(m³/min) 30
Heat rejection from engine(kW) 21
Heat rejection of coolant(kW) 81
Base configuration Standard configuration (add on the base)
Engine with fan Intake and exhaust sysytem: Air filter and connecting pipes;Connecting flang of exhaust pipe
Cooling system Cooling system: Radiator;Connecting pipes;Fan guard;Belt guard



We aim to bring you only the best quality engines. Designed, engineered and manufactured to be at the forefront of technology and reliability. Click here to go to our main engine page for more information.
