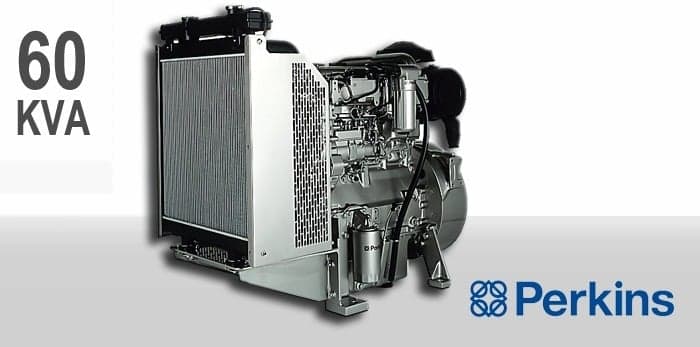

60kVA PERKINS Engine - 1103A-33TG2
TOTAL POWER RANGE
Gross Mechanical Output | 42 - 70 kWm |
Typical Electrical Output | 45-75 kVA (36-60 kWe) |
Rated Speed | 1500/1800 rpm |
50 HZ TYPICAL ELECTRICAL OUTPUT
Prime | 45 - 60 kVA |
Standby | 50 - 66 kVA |
60 HZ TYPICAL ELECTRICAL OUTPUT
Prime | 43 - 55 kWe |
Standby | 47- 60 kWe |
EMISSION STANDARDS
Emissions | Fuel Optimised |
GENERAL
Number of Cylinders | 3 vertical inline |
Bore | 105 mm |
Stroke | 127 mm |
Displacement | 3.3 l |
Compression Ratio | 17.3:1 |
Aspiration | Turbocharged |
Combustion System | Direct injection |
Rotation from Flywheel End | Anti-clockwise |
Cooling System | Liquid |
Aftertreatment | - |
Typical Alternator Efficiency | 89% |
Switchable | Yes |
ELECTROPAK DIMENSIONS
Length | 1150 mm |
Width | 760 mm |
Height | 1300 mm |
Dry Weight | 420 kg |
DISCLAIMER
Note 1 | *Final dimensions dependent on selected options |
DEFINITIONS
Prime Power | Unlimited hours usage with an average load factor of 80% of the published prime power over each 24 hour period. A 10% overload is available for 1 hour in every 12 hours of operation. |
Standby Power | Limited to 500 hours annual usage, up to 300 hours of which may be continuous running. No overload is permitted. |
