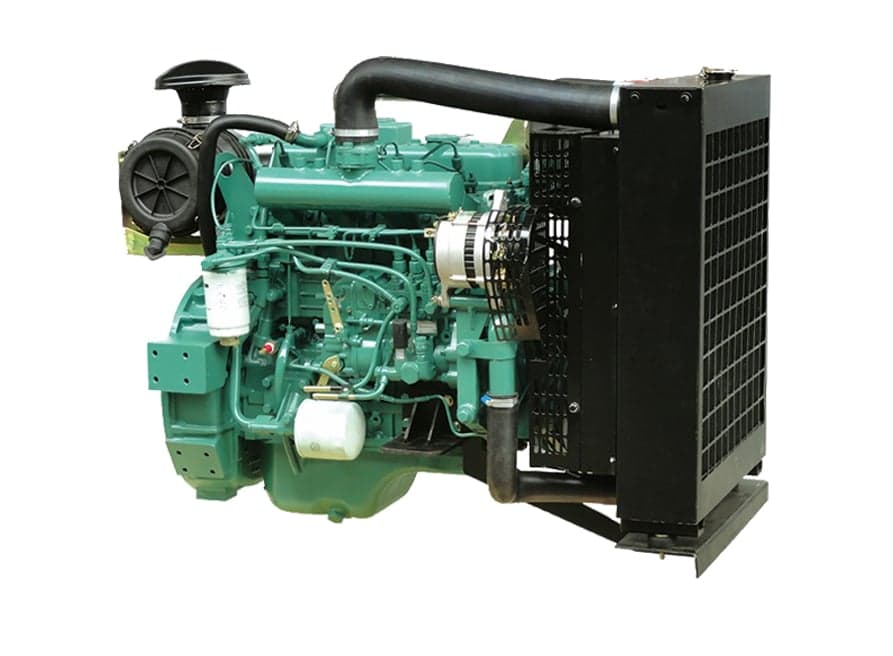

40kVA FAWDE Engine – 4DX21-53D
OUTPUT & CONSUMPTION
| Rated power(without fan)(kW) | 39 |
| Standby power(without fan)(kW) | 43 |
| Fuel consumption(g/kWh) | 230 |
| Oil consumption(L/h) | 0.06 |
| Steady state speed regulation(%) | <3 |
| Oil capacity including filter(L) | 12.5 |
| Emission compliant | Stage II |
| The flywheel shell interface | SAE3 |
| The flywheel shell interface | Flywheel for 11.5″ flexible coupling |
DIMENSIONS
| Dry weight of base(kg) | 350 |
| Dry weight of Gen Pac(kg) | 405 |
| Overall dimension(base)(mm) | 810�680�800 |
| Overall dimension(G.P)(mm) | 1155x680x835 |
LIQUIDS & HEAT
| Fan consumption(kW) | 2.5 |
| 27°C air consumption(m³/min) | 3.2 |
| Heat rejection of exhaust(kW) | 36.4 |
| Exhaust gas temperature after turbine(°C) | 480 |
| Exhaust gas flow(m³/min) | 8.4 |
| Heat rejection from engine(kW) | 2.6 |
| Heat rejection of coolant(kW) | 24.1 |
| Base configuration | Standard configuration(add on the base) |
| Engine with fan | Intake and exhaust system: Air filter and connecting pipes;Connecting flang of exhaust pipe |
| Cooling system | Cooling system: Radiator with connecting pipes;Fan guard;Belt guard |
