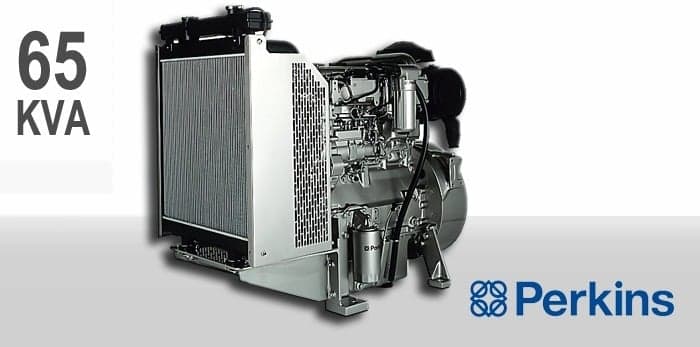

65kVA PERKINS Engine - 1104A-44TG1
TOTAL POWER RANGE
| Gross Mechanical Output | 59.6 -94.5 kWm |
| Typical Electrical Output | 65-100 kVA (52-80 kWe) |
| Rated Speed | 1500/1800 rpm |
50 HZ TYPICAL ELECTRICAL OUTPUT
| Prime | 65-80 kVA |
| Standby | 71.5-88 kVA |
60 HZ TYPICAL ELECTRICAL OUTPUT
| Prime | 60.8-73 kWe |
| Standby | 66.9-80.3 kWe |
EMISSION STANDARDS
| Emissions | Fuel Optimised |
GENERAL
| Number of Cylinders | 4 vertical inline |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 4.4 l |
| Compression Ratio | 17.25:1 |
| Aspiration | Turbocharged |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Aftertreatment | - |
| Typical Alternator Efficiency | 89% |
| Switchable | Yes |
ELECTROPAK DIMENSIONS
| Length | 1241 mm |
| Width | 629 mm |
| Height | 951 mm |
ENGINE DIMENSIONS*
| Dry Weight | 463 kg |
DISCLAIMER
| Note 1 | *Final dimensions dependent on selected options |
DEFINITIONS
| Prime Power | Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. |
| Standby Power | Power available at variable load in the event of a main power network failure. No overload is permitted. |
