Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine – all with a Sunsynk Hybrid Inverter. It’s ideal for home and business and scalable so that you can expand it as required.
- Start with UPS backup power (with batteries and inverter only) and add panels later.
- Start with Grid-tied (with panels and inverter only) and add batteries later.
- Install a complete Hybrid system including batteries and solar panels which can be expanded, or...
- Go totally off the grid with a completely independent system.
Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.

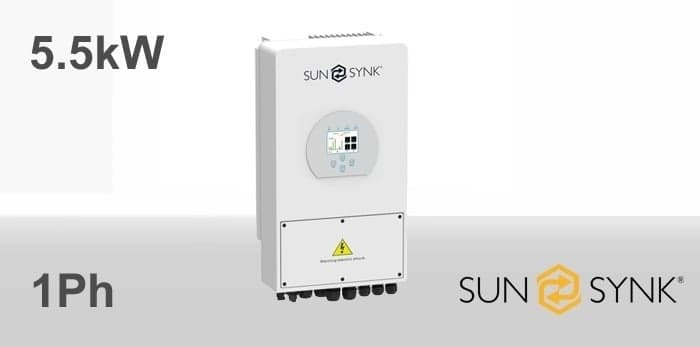

MODEL | SUNSYNK-5.5KW |
BATTERY DATA | |
Type | Lead-acid or Li-Ion |
Battery Voltage Range (V) | 40V-60V |
Max. Charging Current (A) | 125 Amps |
Max. Discharging Current (A) | 125 Amps |
AGM Charging Curve | 3-Stage / Equalisation |
External Temperature Sensor | Optional |
Charging for Li-Ion Battery | Self-adaption to BMS |
PV INPUT DATA | |
Max. DC Input Power (W) | 6000W |
Max. DC Input Voltage (V) | 500V |
MPPT Range (V) | 125-425V |
Start Up Voltage (V) | 150V |
Max. Input Current (A) | 11A + 11A |
Number of MPPT Trackers | 2 |
Number of Strings per MPPT | 1 + 1 |
Weight | 20.5Kg |
Size (width x height x depth) | 580mm x 330mm x 217mm |
AC OUTPUT DATA | |
Rated AC Output & UPS | 5000W |
Peak Power Off-Grid | 10,000W (2xRated) |
Max AC Current ( I ) | 25 Amps |
Output Frequency | 50 / 60 Hz |
THD | <3%(Linear Loading<1.5%) |
EFFICIENCY | |
Max. Efficiency | 97.6% |
Euro Efficiency | 97% |
MPPT Efficiency | 99.9% |
PROTECTION | |
PV Arc Fault Detection | PV Input lighting protection |
Anti-Islanding Protection | PV reverse polarity protection |
Insulation Resistor | Residual Current Monitoring Unit |
Output Over Current | Output short circuit protection |
Output Over Voltage | - |
Operating Temperature | -25℃ to 60℃ |
Noise (db) | <30 db |
Communication with BMS | RS485: CAN |
