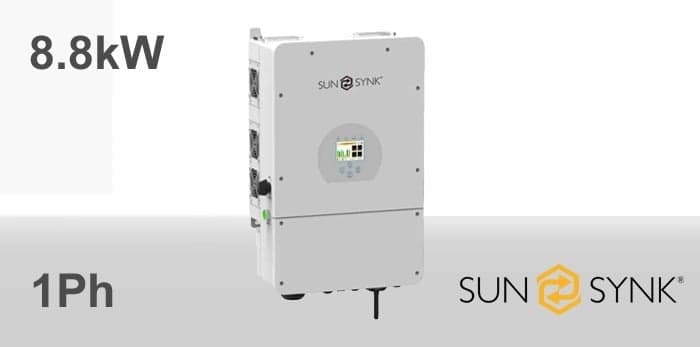

Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine – all with a Sunsynk Hybrid Inverter. It’s ideal for home and business and scalable so that you can expand it as required.
- Start with UPS backup power (with batteries and inverter only) and add panels later.
- Start with Grid-tied (with panels and inverter only) and add batteries later.
- Install a complete Hybrid system including batteries and solar panels which can be expanded, or...
- Go totally off the grid with a completely independent system.
Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.
Inputs:
PV solar
AC grid power
Batteries
Generator
Output voltage –
120/240Vac (split phase),
208Vac (2/3),
(single phase) 230Vac
Continuous power
8000W
Backup power - 8000W
DC – 48V
Battery charger – 190A
Transfer time <= 10ms
Battery charger adjustable for battery bank size and type
Can charge Lead Acid and Li-ion batteries
Li-ion battery charging self-adapts to BMS
Solar Input
Max power input – 10400W
Max V DC input – 370V (100V~500V)
Max current input – 26A+26A
MPPTs – 2
MPPT Range – 125~425V
Multi-core processor design and advanced MPPT control
High reliability and response speed
Programmable export
Works parallel on or off-grid
Single or 3-phase operation
Multiple operating modes:
Grid-tie only
Hybrid
Off-grid
Battery only
Additional features
AC couple – For additional PV input
6 stages time of use settings
IP65
Meter Port (Ecco model only)
