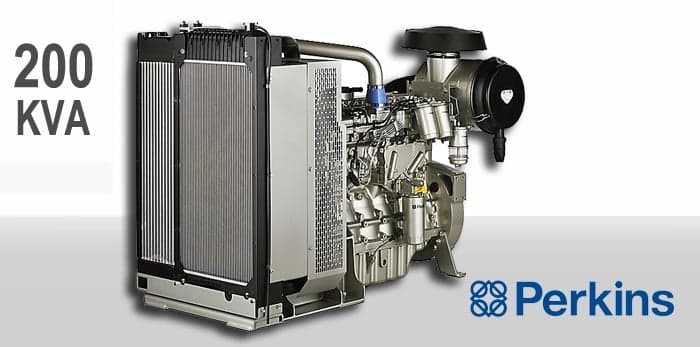

200kVA PERKINS Engine - 1106A-70TAG4
TOTAL POWER RANGE
| Gross Mechanical Output | 140-204 kWm |
| Typical Electrical Output | 150-220 kVA (120-176 kWe) |
| Rated Speed | 1500/1800 rpm |
50 HZ TYPICAL ELECTRICAL OUTPUT
| Prime | 150.0-200 kVA |
| Standby | 165.0-220 kVA |
60 HZ TYPICAL ELECTRICAL OUTPUT
| Prime | 132.0-156.8 kWe |
| Standby | 146.5-173 kWe |
EMISSION STANDARDS
| Emissions | Fuel Optimised |
GENERAL
| Number of Cylinders | 6 vertical inline |
| Bore | 105 mm |
| Stroke | 135 mm |
| Displacement | 7.01 l |
| Compression Ratio | 16:1-18.2:1 |
| Aspiration | Turbocharged aftercooled |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Aftertreatment | - |
| Typical Alternator Efficiency | 91-92% |
| Switchable | Yes |
ELECTROPAK DIMENSIONS
| Length | 1706 mm |
| Width | 756 mm |
| Height | 1092 mm |
| Dry Weight | 743 kg |
DISCLAIMER
| Note 1 | *Final dimensions dependent on selected options |
DEFINITIONS
| Prime Power | Unlimited hours usage, with an average load factor of 80% over each 24 hour period. A 10% overload is available for 1 hour in every 12 hours operation. |
| Standby Power | Limited to 500 hours annual usage, with an average load factor of 80% of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on standby power. |
