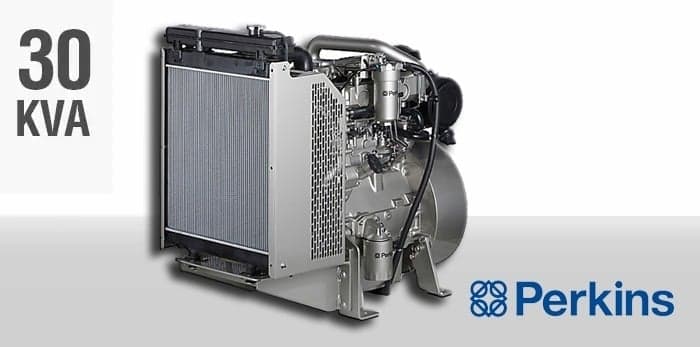

30kVA PERKINS Engine - 1103A-33G
TOTAL POWER RANGE
| Gross Mechanical Output | 28 - 36.5 kWm |
| Typical Electrical Output | 30-38 kVA (24-31 kWe) |
| Rated Speed | 1500/1800 rpm |
50 HZ TYPICAL ELECTRICAL OUTPUT
| Prime | 30 kVA |
| Standby | 33 KVA |
60 HZ TYPICAL ELECTRICAL OUTPUT
| Prime | 27.9 kWe |
| Standby | 30.6 kWe |
EMISSION STANDARDS
| Emissions | Fuel Optimised |
GENERAL
| Number of Cylinders | 3 vertical inline |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 3.3 l |
| Compression Ratio | 19.25:1 |
| Aspiration | Naturally aspirated |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Aftertreatment | - |
| Typical Alternator Efficiency | 87% |
| Switchable | Yes |
ELECTROPAK DIMENSIONS
| Length | 1000 mm |
| Width | 629 mm |
| Height | 951 mm |
ENGINE DIMENSIONS*
| Dry Weight | 412 kg |
DISCLAIMER
| Note 1 | *Final dimensions dependent on selected options |
DEFINITIONS
| Prime Power | Unlimited hours usage with an average load factor of 80% of the published Prime power over each 24 hours period. A 10% overload is available for 1 hour in every 12 hours operation. |
| Standby Power | Limited to 500 hours annual usage with an average load factor of 80% of the published Standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on Standby power. |
